(Information supplied courtesy Marine Safety, WA Department for Planning and Infrastructure. Extracts by Ranger Hope© 2008).
WARNING- FOR CLASSROOM EXERCISE AND EXAMINATION USE ONLY
The Authors & Marine Safety WA accept no liability for the use of the contained data, that describes a fictitious vessel M.V. Twosuch, being applied wholly or partially to any real vessel or situation.
TABLES CONTENTS:
Hydrostatic particulars

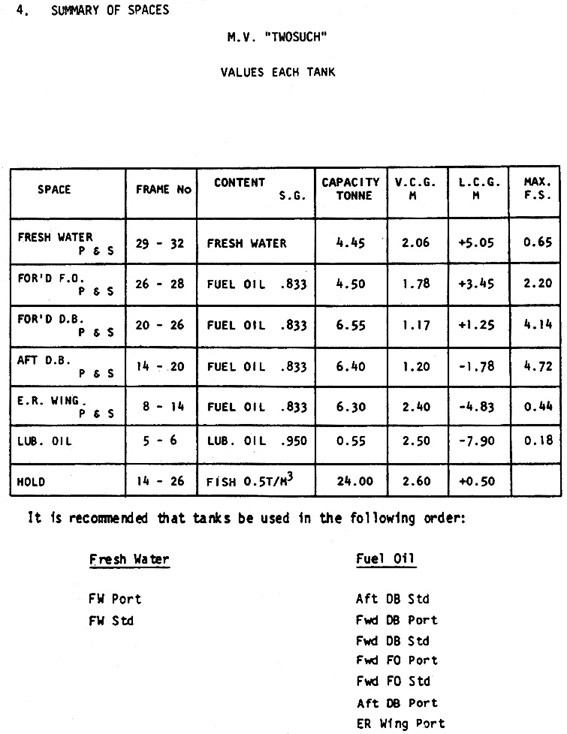

Summary of spaces

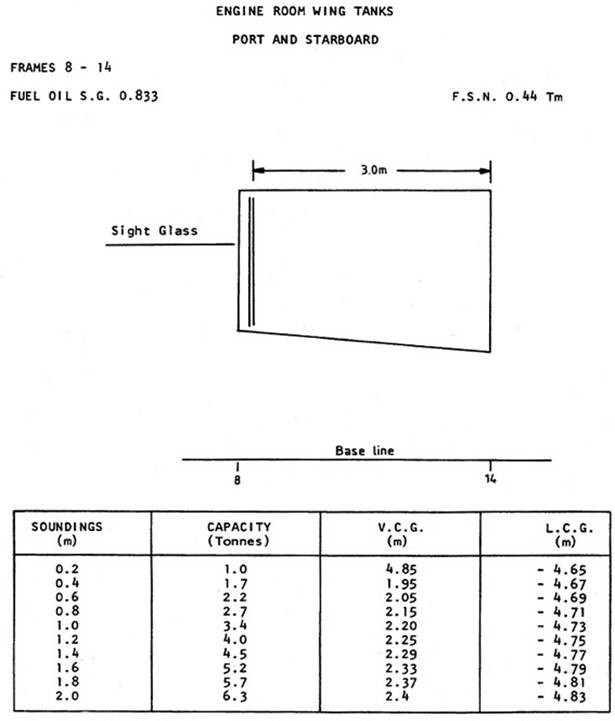

Fresh water . Fwd fuel oil . Fwd fuel oil D/B . Aft fuel oil D/B . E.R.wing tanks
Stowage information
Curve of limiting KG
Curve of limiting LCG
HYDROSTATIC PARTICULARS
EXERCISE AND EXAMINATION USE ONLY - 4
EXERCISE AND EXAMINATION USE ONLY- 5
EXERCISE AND EXAMINATION USE ONLY- 6
EXERCISE AND EXAMINATION USE ONLY- 7
EXERCISE AND EXAMINATION USE ONLY- 8
EXERCISE AND EXAMINATION USE ONLY- 9
EXERCISE AND EXAMINATION USE ONLY - 10
EXERCISE AND EXAMINATION USE ONLY – 11
EXERCISE AND EXAMINATION USE ONLY – 12
EXERCISE AND EXAMINATION USE ONLY – 13
